is a program designed for simulating gas-phase chemically reacting
systems. Sets of parameters for calculating thermodynamic functions
of species and rate constants of reactions are collected in
databases. This data is displayed in tables and easily handled via
the user interface. You can edit the data, sort and select species
and reactions with particular properties, and move the data from one
database to another. The program checks the data and if there are
problems will display error messages. Chemked-I provides numerical
and graphical information on the thermodynamic functions and the
rate constants of reactions. Data and charts can be printed or
exported to the clipboard or as a file. As a result you will have
verified and consistent databases with easy access to the
Chemked-I incorporates a solver to solve problems of Gas-phase chemical kinetics at constant pressure and at constant volume. The data from the databases is used for generating a desirable reaction mechanism that is entered into the solver. The results of the solution are species concentration and gas temperature vs. time. The program allows you to solve a wide range of problems including simulation of Gas-phase chemical reactors and chemical processes behind Shock waves.
The following screenshots present most important features of Chemked-I.

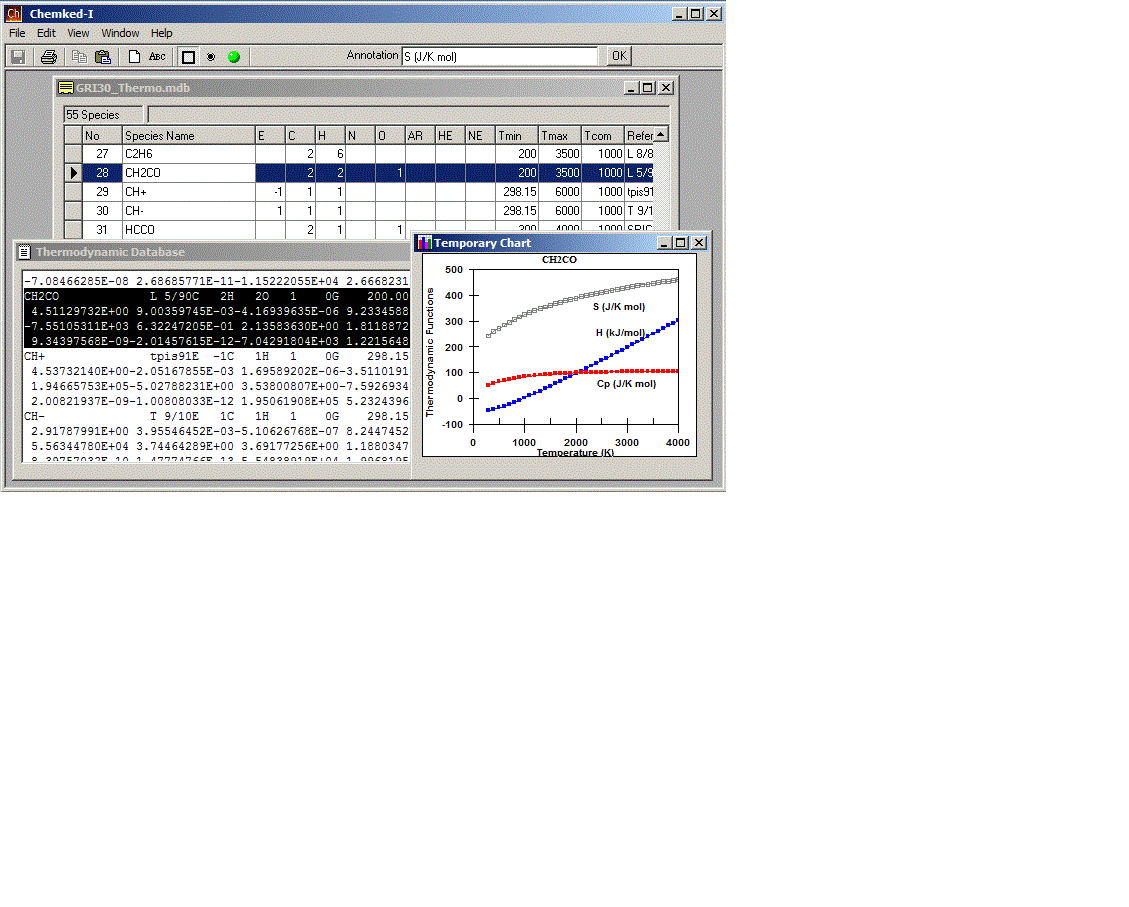

- Fig.1 Windows of thermodynamic database.

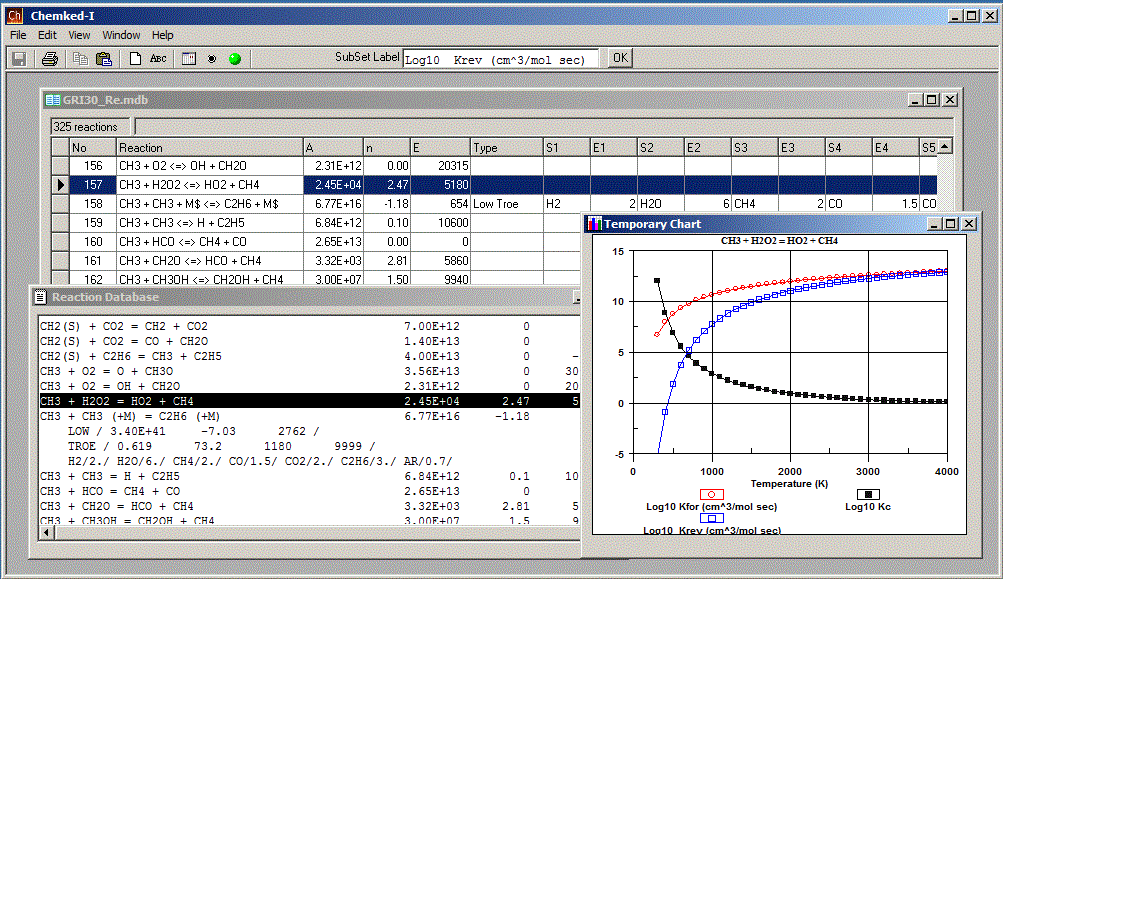

- Fig.2 Windows of chemical kinetics database.

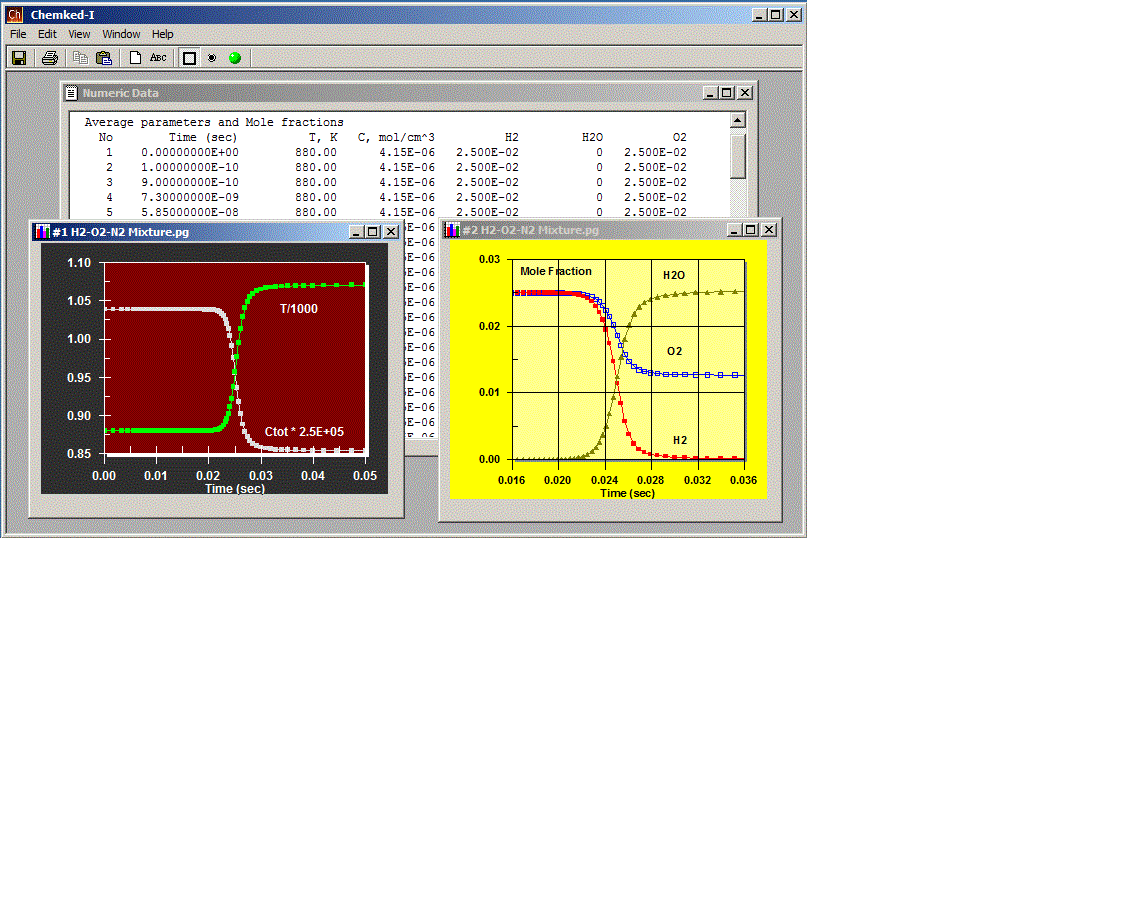

- Fig.3 Output windows
Chemked-I version 5.1 is distributed free of charge.
Click here to download Chemked-I 5.1
